Darlo's iOS 3 Folders Icons Customization Guide
« on: December 26, 2010, 09:06:41 PM »
~DARLO'S FOLDER CUSTOMIZATION~
NOTE: READ THE WHOLE TOPIC BEFORE CUSTOMIZING
1) Editing the background/folder
A) Step by step tutorial

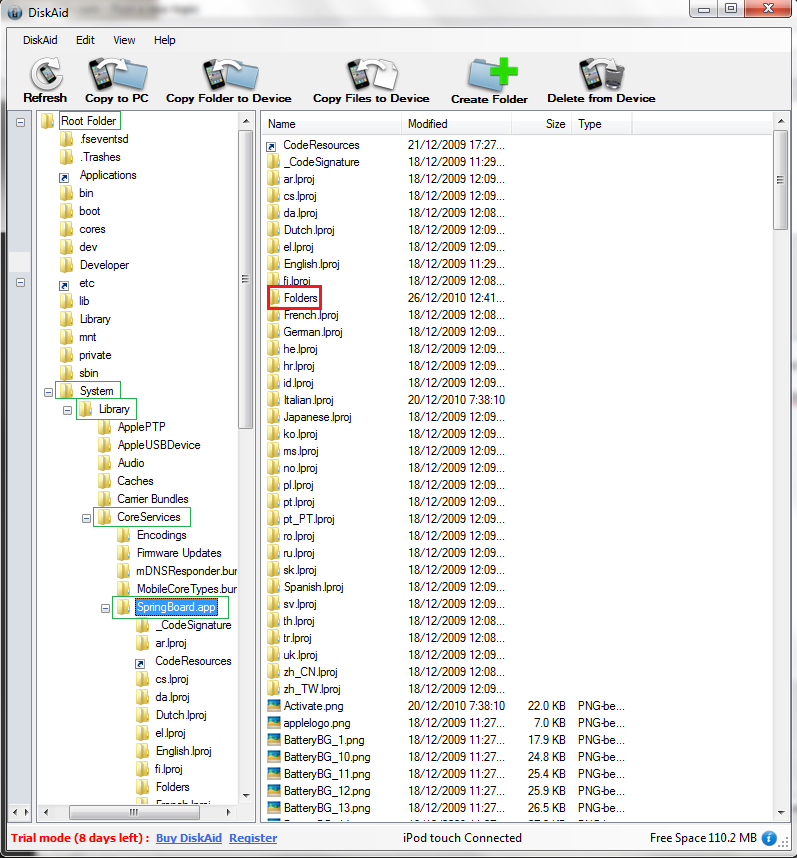

1) Locate "/System/Library/CoreServices/SpringBoard.app/Folders/" through WinSCP, Diskaid, Iphonebrowser

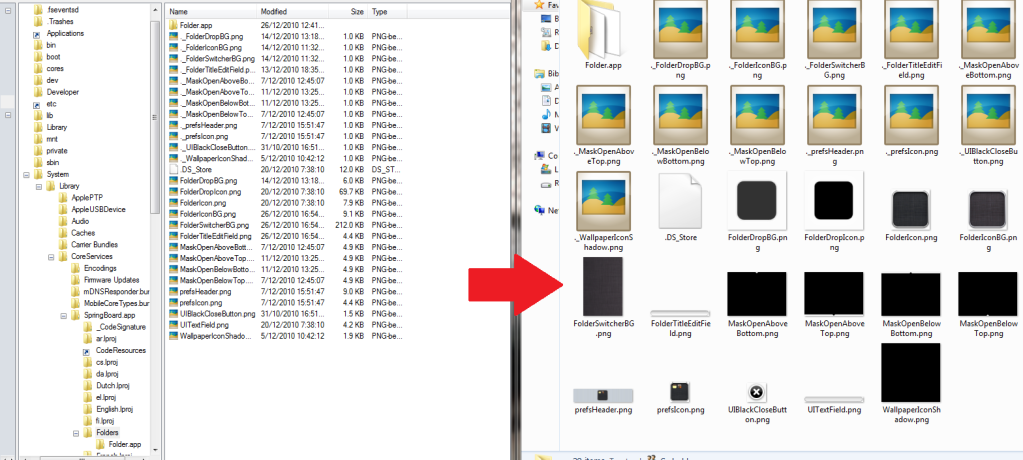

2) Copy the files into Folders into a Folder created somewhere on you computer (So you can't do anything wrong when customizing)

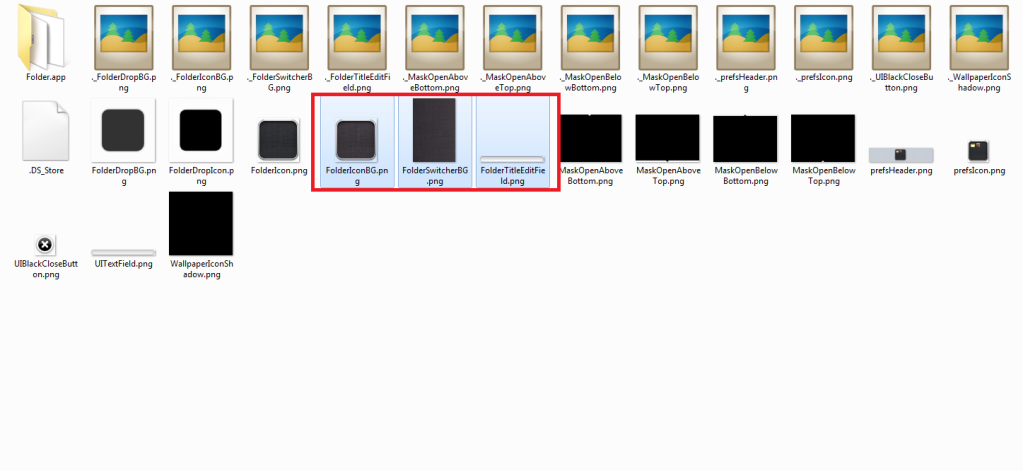

3) Copy the "FolderIconBG.png", "FolderSwitchedBG.png" and "FolderTitleEditField.png" into a new category, those 3 items are the only ones that you can edit.

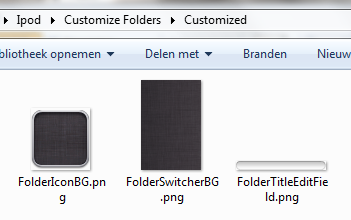

You get this:



4) Customize these 3 items in Photoshop, Gimp (FREE) or any other picture edit software.
If you can't customize these files on your own, you can always download these (see Downloads section at the bottom)
REMEMBER:

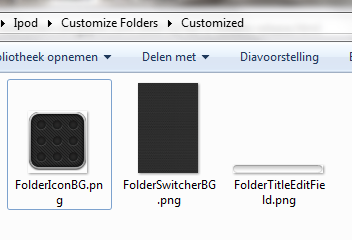

EXAMPLE of my files:

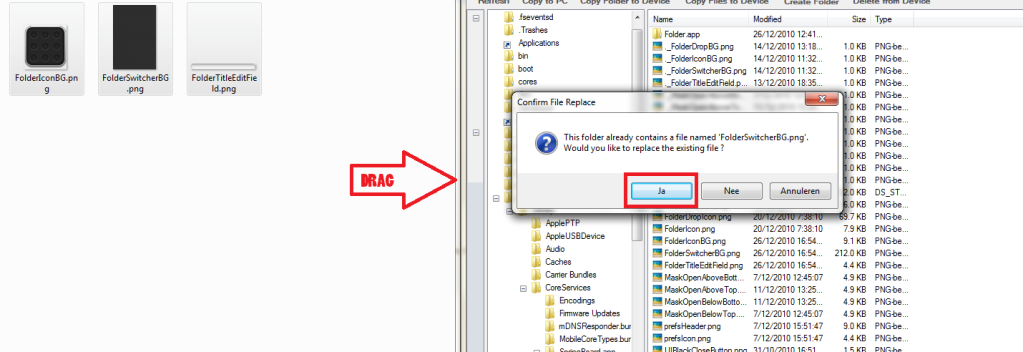

5) Drag the 3 customized files into the "/System/Library/CoreServices/SpringBoard.app/Folders/" category and say YES to the overwrite warning





6) On your iPod/iPhone, re-spring your springboard by swiping the home app off the backgrounding tab or reboot.

7) Click on each folder to open and close it again to get the new BG and Folder Image enabled. Do this until you did them all.



NOTES
-Respring after overwriting the files
-BACK-UP the original files!!!

B) Downloads
ORIGINAL FILES (If you did NOT save a back-up)
http://www.mediafire.com/?tk8tuyry88vp8gv
CUSTOMIZED FILES
http://www.whited00r.com/forum/viewtopic.php?f=12&t=401 Thanks to HBSN11 for managing this topic!
MORE coming soon

2) Manual Tweaks (Lifting up your dock labels and enabling background icon shadows)
A) Step by step tutorial
1) Copy this file "/private/var/mobile/Library/Preferences/com.darlo770.folders.plist" to your computer

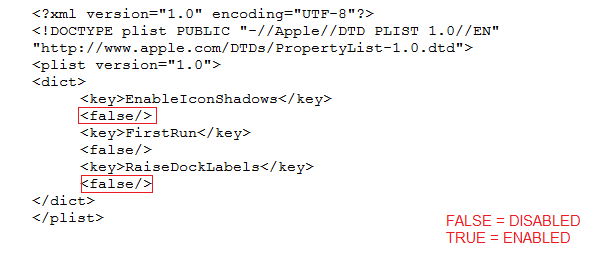

2) Open the file in WordPad (or any text viewer) and edit this boolean.

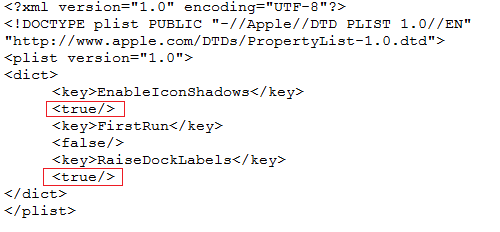

My settings:

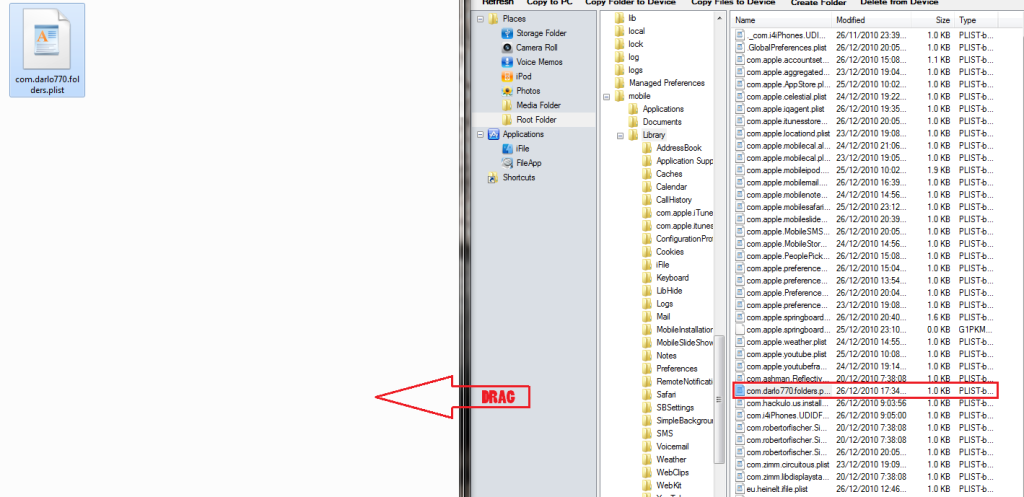

3) Drag the file into the directory where it comes from (see 1) and say yes when it asks you to overwrite





EXAMPLE

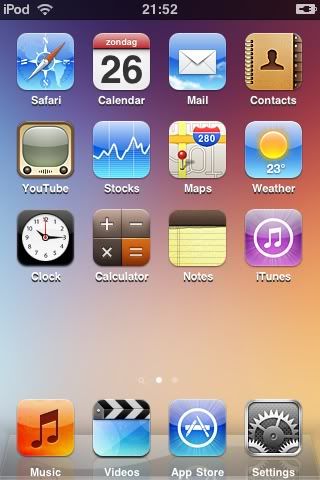

Before: After:


NOTES
-Back-up the original file
-Only edit the 2 booleans mentioned in the guide


B) Downloads
DL link to plist with raised dock icon labels:
http://uppit.com/n3nnsk58ljqn/com.darlo770.folders.plist

DL link to plist with icon shadows
http://uppit.com/b308jr7yqedr/com.darlo770.folders.plist

DL link to plist with icon shadows and raised dock icon labels
http://uppit.com/fh2qtbdmzx0s/com.darlo770.folders.plist


3) Thanks to Darlo
The maker of the IOS4 Folders for 3.1.3 FW can be thanked by donations!
http://www.whited00r.com/folders.html
http://bit.ly/fEM8I6



POST COMMENTS BELOW (:

-Simon
« Last Edit: January 16, 2013, 10:10:42 PM by PierreP »
Hellow

Offline Darlo770

  • Hero Member
  • ****
  • Posts: 397
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #1 on: December 26, 2010, 10:49:19 PM »
Very nice thread! This should save me responding to loads of support emails. Thanks! :)
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »

Offline RKO1200

  • Senior Member
  • ***
  • Posts: 65
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #2 on: December 26, 2010, 10:50:53 PM »
Yea, this is good! I sticky it 8-)
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »
This project is free but feel free to help us out. http://bit.ly/dHz3VK

iphone 2G os Whited00r.custom, fw, v4.4
iphone 3GS os custom, 4.3.3

Offline Simon

  • Hero Member
  • ****
  • Posts: 230
  • Be Pride
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #3 on: December 26, 2010, 10:57:14 PM »
Yaay !

Made this to save Darlo and others to save time responding how-to   ;)

Thanks for the positive reactions
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »
Hellow

Offline omarvtec

  • Senior Member
  • ***
  • Posts: 26
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #4 on: December 31, 2010, 01:11:16 AM »
i can install  folder enhancer??
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »

Offline blued00r

  • Exile
  • SuperHero Member
  • *****
  • Posts: 791
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #5 on: December 31, 2010, 05:55:05 AM »
Quote from: "omarvtec"
i can install  folder enhancer??

NO this is not an ios 4 port so any ios4 folder enhancement will not work
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »

Offline Phillip

  • Hero Member
  • ****
  • Posts: 479
  • Country: ca
  • Boss
    • View Profile
  • Device: Does Not Own iDevice ARMv6
  • My Computer: Windows
Re: Darlo's Folders Customization Guide
« Reply #6 on: December 31, 2010, 06:09:01 AM »
best tut yet :D!!

Keep up the good work :D
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »

Offline Simon

  • Hero Member
  • ****
  • Posts: 230
  • Be Pride
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #7 on: December 31, 2010, 04:57:50 PM »
Quote from: "philcamlin"
best tut yet :D!!

Keep up the good work :D
Will remake some of the old tuts of other guys with pictures + make a vid on how to install WD FW soon (:

(Its newyear, so it is party-time  :roll: )

-Greetings
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »
Hellow

Peerless

  • Guest
Re: Darlo's Folders Customization Guide
« Reply #8 on: January 01, 2011, 10:42:13 PM »
Is there any way I can have the raised dock icon labels without having the iOS3 folders???
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »

Offline Simon

  • Hero Member
  • ****
  • Posts: 230
  • Be Pride
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #9 on: January 02, 2011, 05:46:28 PM »
Quote from: "Peerless"
Is there any way I can have the raised dock icon labels without having the iOS3 folders???
I thought that they were in the right place before installing Folders and in the wrong place after installing Folders...
And you can try the .plist without having folders installed, maybe it might work.
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »
Hellow

Peerless

  • Guest
Re: Darlo's Folders Customization Guide
« Reply #10 on: January 02, 2011, 06:37:12 PM »
Quote from: "Simon"
Quote from: "Peerless"
Is there any way I can have the raised dock icon labels without having the iOS3 folders???
I thought that they were in the right place before installing Folders and in the wrong place after installing Folders...
And you can try the .plist without having folders installed, maybe it might work.

Hi, I'm sorry I should have clarified better.

I'm not using whtied00r; I'm just on the custom 3.1.3 FW.

I SSH'd and put in iOS4 dock to the default files, but the dock icon labels are low on the dock relating to their icons.

And the .plist doesn't work by just putting SSH'ing it in without Darlos folders.
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »

Offline imoe

  • Hero Member
  • ****
  • Posts: 499
  • Country: pk
    • View Profile
  • Device: iPhone 2G
  • My Computer: Windows
Re: Darlo's Folders Customization Guide
« Reply #11 on: January 22, 2011, 04:22:09 PM »
if anyone want personal theme for Folders PM Me with two pics,

1. for folder icon
2. for folder background.
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »
WP8 Nokia Lumia 620, Whited00r6 iPhone 2G, Windows 7 User, FCBarcelona Fan

Offline Miraclevn

  • New Member
  • *
  • Posts: 3
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #12 on: January 26, 2011, 08:13:17 AM »
Thanks to Darlo for Folders. Its great :)
I have a question. How to custom size of icon inside Folder?
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »

Offline bumpofjimmy

  • New Member
  • *
  • Posts: 1
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #13 on: February 01, 2011, 12:18:20 PM »
Hey Darlo,

I was wondering if there was a way to disable the Springboard fading effect of the other icons. I wanted to see if disabling this would open up my folders faster for me.

Cheers,
Jim
« Last Edit: January 01, 1970, 12:00:00 AM by Guest »

Offline Darlo770

  • Hero Member
  • ****
  • Posts: 397
    • View Profile
Re: Darlo's Folders Customization Guide
« Reply #14 on: February 01, 2011, 05:19:13 PM »
Not without me releasing another version.
